UB-Xa Editor V5

UPDATE

New File functions and Side Panel parameters

Macro Controller

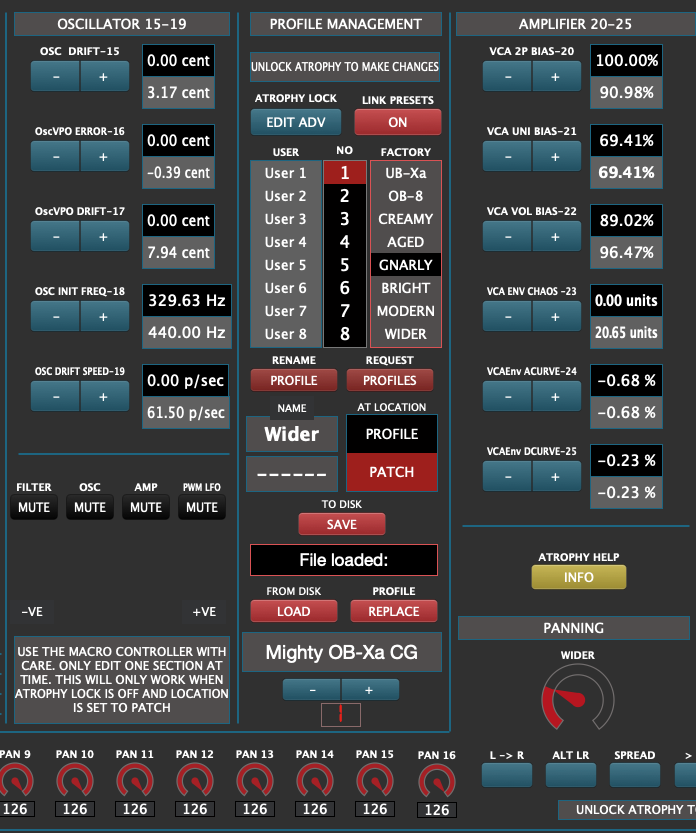

I discovered the Atrophy Recall was a bit flaky so the Atrophy settings now load with the patch even if they are not stored in the patch. This keeps Atrophy settings  in sync with every patch. As I was sorting this out I thought it would be fun to add an Atrophy Macro Controller. All this does is let you edit a section or even all the parameters at once. The results are unpredictable so you can only use it when the Atrophy save location is set to Patch - that way you can't completely screw up your atrophy profile.

I also added  additional file functions so you can now save and load Current Program. This lets you load UB-Xa patches from commercial developers like Ultimate Patches

The final update is the Side Panel. These can be saved with the patch so when you load a Current Program the Side Panel will update too. Great for accessing the hidden features of the Performance LFO like tempo lock and key trig.

This is the latest and probably the last version. It is V5 but I have renamed it V3 to keep the links the same.

• Reduced SysEx data requests to just patch changes rather than whole bank transfers
• Fast transfer of all 512 patch names using Get Patch Names button
• Load/Save Patches and Banks  - use the refresh patch names to update patch list
• Added a request Globals button
• Expanded the number of Global parameters to include Pedals
• Refresh Atrophy button to ensure Atrophy parameters are in sync
• Expanded Portamento control section
• Upper and Lower Bank Patch lists
• Easy to set Upper and Lower voices
• Correctly scaled values for on screen rotary controls
• More Shift functions are available - including ARP Swing that does nothing...yet?
• There are a couple of new ARP controls but they do not work and are disabled
• Help and info Tab
• Matrix editor view has new look
• Toned down colour scheme with more grey and less blue and red
• Tested on Mac Catalina and Windows 10
• Picked up and fixed a few more bugs

Please read the comments section at the bottom of the page for latest information

Downloads are at the bottom of the page

Jump to comments

Downloads

NOTE: To keep old DL links the same the filenames say V3 but they are the updated V5 versions.

All files have been scanned with AVG Antivirus. The editor is free and comes with no warranties. Play at your own risk. You will need to grant access in Security and Privacy as I am unknown developer :(

Mac versions were built on an iMac running Catalina. Plugins tested with Live 10, Logic 10.6 and Cubase LE 10.5. The plugins were compiled using Reaper. Users report that the standalone app works on later M1 Macs but the  plugins do not. YMMV

UB-Xa Mac Standalone

UB-Xa AU Component

UB-Xa Mac VST Plugin - copy to Plugins/VST

PC version was built on VM running Windows 7 Home Basic, but I have tested it on Windows 10 and it works fine - YMMV

UB-Xa PC Standalone

Get some of my UB-Xa patches here:

Preset Patch

Example of storing Pan in a Preset - Pan is an Atrophy setting. This example uses 4 patches Jump Right. Jump Left, Jump 1-8 Left + 9-16 Right then Alternate LR.

This is a clip from my phone showing the Pan settings in the UB-Xa changing as each patch is recalled.
